vimsynth/modules/div

modules/sequencing/DIV

DIV

Passes every n-th pulse. Two DIVs at 3 and 4 off one CLOCK IS a polyrhythm — nothing implements polyrhythm, it is what happens when you compose them.

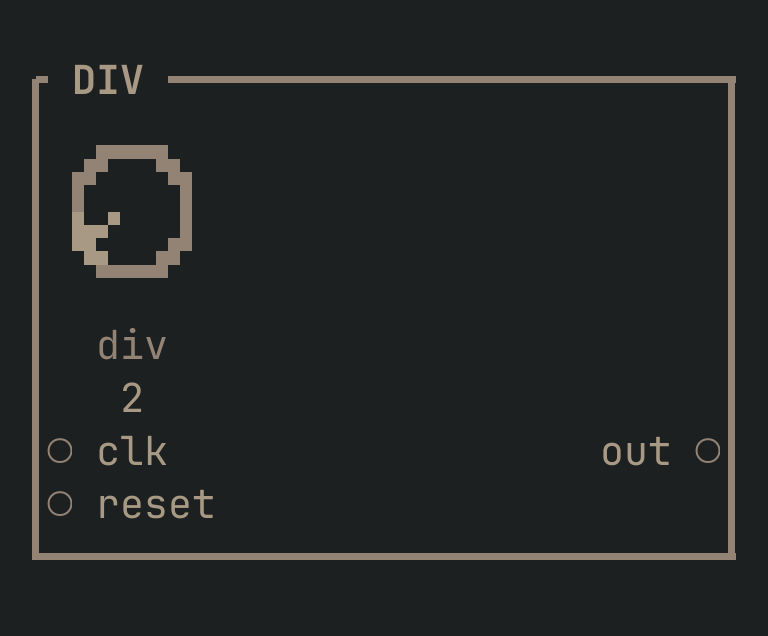

The DIV card as vimsynth draws it: its title bar, 1 knobs, 2 inputs down the left edge and 1 outputs down the right
DIV on an empty rack — 32×12 cells, knobs at their defaults. Press a in the app and pick DIV to get this card.

inputs

Down the left edge of the card, top to bottom.

clktrigger
The clock to divide.
resettrigger
Back to the first pulse of the cycle.

outputs

Down the right edge, in the same order.

outtrigger
The pulses that survived.

knobs

Left to right across the face — the dials in the picture.

div1 … 16= 2
Pass one pulse in every n.

more

The full reference — every parameter curve, the patching notes and the worked examples — lives in the manual: docs.vimsynth.com/modules/div. In the app itself, :help DIV opens the same page without leaving the rack.
