RATCH

Bursts each pulse into several — the stutter, the roll, the trap hi-hat.

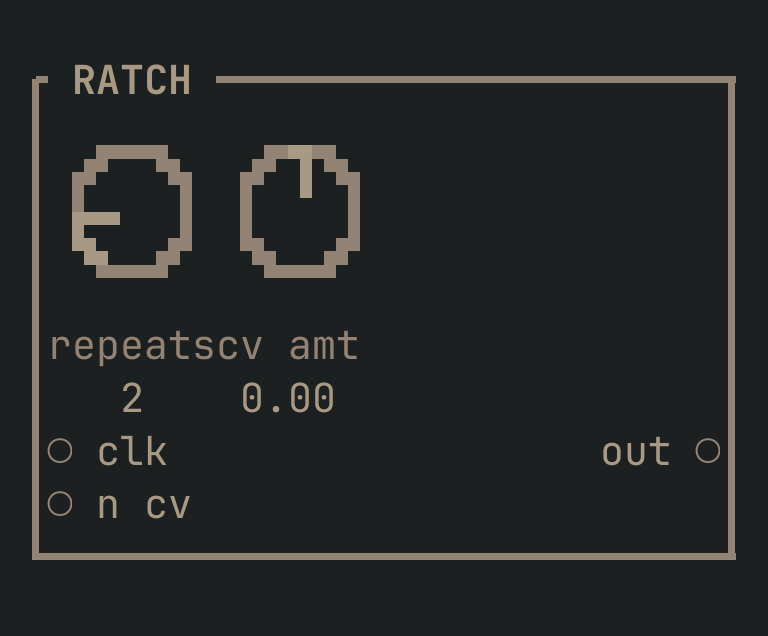

The RATCH card as vimsynth draws it: its title bar, 2 knobs, 2 inputs down the left edge and 1 outputs down the right — RATCH on an empty rack — 32×12 cells, knobs at their defaults. Press a in the app and pick RATCH to get this card.

inputs

Down the left edge of the card, top to bottom.

clktrigger: The clock to stutter.
n cvcv: Modulates how many hits per beat. Bipolar, so it can thin a burst as well as thicken it.

outputs

Down the right edge, in the same order.

outtrigger: The pulses that survived.

knobs

Left to right across the face — the dials in the picture.

repeats1 … 8= 2: Hits per beat.
cv amt-1 … 1= 0: How far the n cv input moves that. Bipolar.

more

The full reference — every parameter curve, the patching notes and the worked examples — lives in the manual: docs.vimsynth.com/modules/ratch. In the app itself, :help RATCH opens the same page without leaving the rack.
