PAN

Places a mono sound in the stereo field, at constant power so it does not dip in the middle. Use pos cv from a slow LFO for movement.

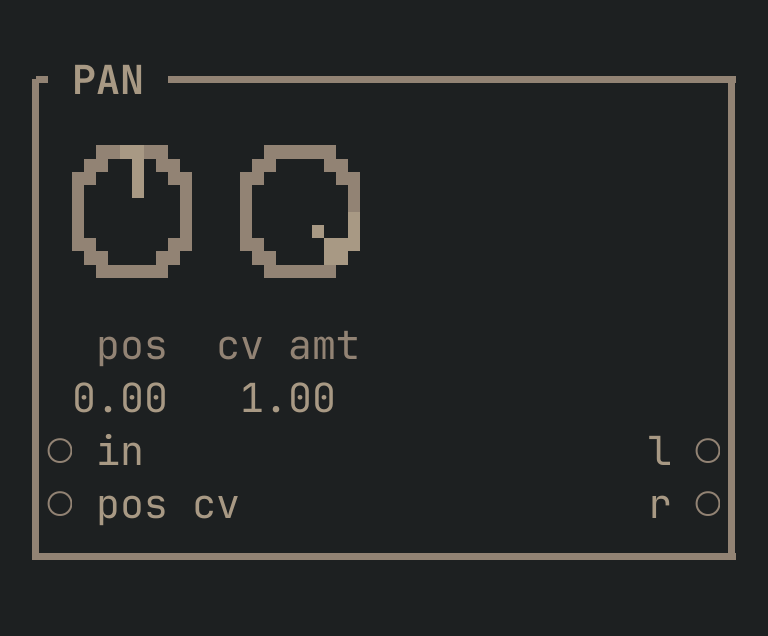

The PAN card as vimsynth draws it: its title bar, 2 knobs, 2 inputs down the left edge and 2 outputs down the right
PAN on an empty rack — 32×12 cells, knobs at their defaults. Press a in the app and pick PAN to get this card.

inputs

Down the left edge of the card, top to bottom.

inaudio
The mono signal to place.
pos cvcv
Moves it across the field. A slow LFO here is drift.

outputs

Down the right edge, in the same order.

laudio
Left.
raudio
Right.

knobs

Left to right across the face — the dials in the picture.

pos-1 … 1= 0
Where in the field. −1 is hard left, +1 hard right.
cv amt-1 … 1= 1
How far the pos cv input moves it. Bipolar.

more

The full reference — every parameter curve, the patching notes and the worked examples — lives in the manual: docs.vimsynth.com/modules/pan. In the app itself, :help PAN opens the same page without leaving the rack.
